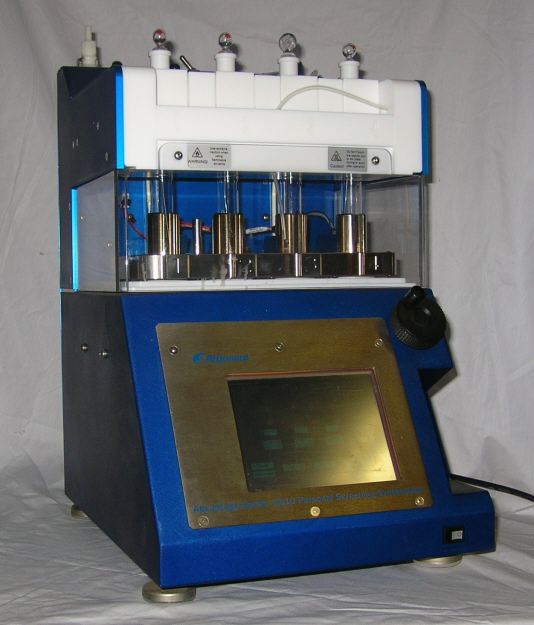

Argonaut 2410 Personal Screening Synthesizer
|
 |
Category: Laboratory & Medical Equipment
Part Number: 2410
Manufacture: Argonaut
Inv. Number: 511
Price: GET A QUOTE
Fixed shipping rate: 0.00
Description: The 2410 personal screening synthesizer is designed to help process chemists who work with small amounts of material, simulate and replicate the thermal and mixing conditions seen in larger production reactors. Large-Scale Capabilities at Benchtop Size and Cost Four individual reaction vessels In situ thermal probe monitors and controls solution temperature Stirring from any height duplicates large-scale overhead mixing Independent reaction management and data collection provides in-depth information similar to that available from large-scal
KEY FEAURES
In Situ Thermal Monitoring and Control
A key difference between benchtop reactors and large-scale systems is the rate of heating, with larger-scale reactions responding more slowly to thermal gradients. To address this issue, the 2410 Personal Screening Synthesizer was designed to monitor the temperature of the actual reaction solution, not just the temperature of the reactor block. In situ temperature control and monitoring makes it possible for chemists to see thermal changes instantaneously. Chemists can adjust the thermal ramp rate for slow temperature changes using precise control, and can simulate large-volume reaction conditions.
Variable-Height Reaction Mixing
Large-scale reactors feature overhead mixing, allowing the impeller to be placed at variable heights within the reaction vessel. Unlike other small-volume reactors that stir only from the bottom, the 2410 Personal Screening Synthesizer features variable-height mixing that duplicates the behavior of overhead mixing. Magnetic stir bars can be placed at any height and perform powerful, vortex mixing without becoming decoupled, even in highly viscous solutions.
Touch Screen Reaction Setup
Real-time reaction data provides the chemist with immediate feedback on the progress of each reaction. Visible, backlit reaction vessels and 14/20 tapered joints give chemists the benefit of hands-on, benchtop chemistry with the capabilities of sophisticated reaction control and analysis.
Second-by-Second Reaction Monitoring
The 2410 Personal Screening Synthesizer monitors and records internal reaction and external block temperatures, useful for subsequent analysis and side-by-side comparisons. This information is valuable to determine the feasibility and safety of process scale-up. Results are displayed in real-time on an easy-to-read color screen.
Portable Reaction Data
Instead of using external computers and messy cables that take up valuable hood space, the 2410 Personal Screening Synthesizer uses a removable memory card that makes it easy for chemists to transfer their reaction data to a desktop computer.
Pushbutton Reaction Charting
Large amounts of second-by-second reaction data are displayed in easy-to-read charts including:
Internal reaction solution temperature (TINT)
Reactor block temperature (TBLK)
Reaction solution temperature minus reactor block temperature (TINT - TBLK) shows the timing and magnitude of thermal events
|
|
|
 |
|
| |
|
|
